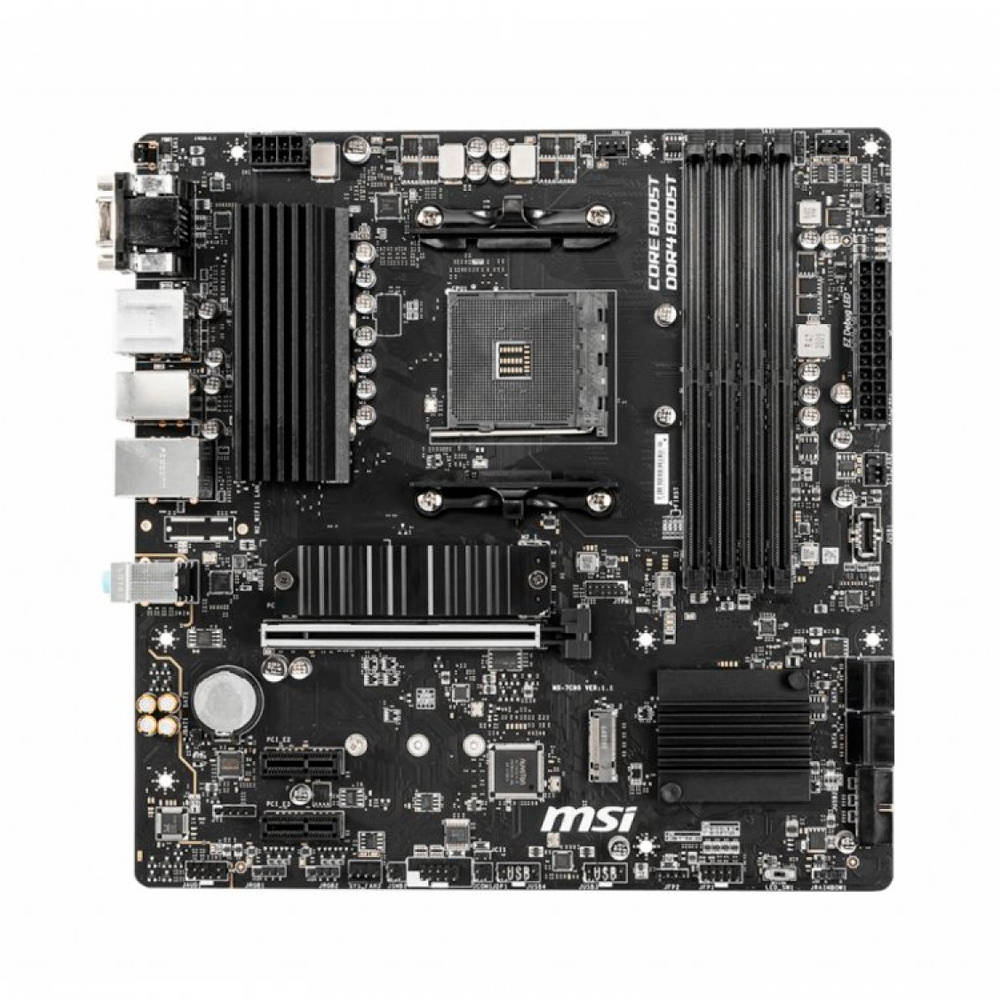

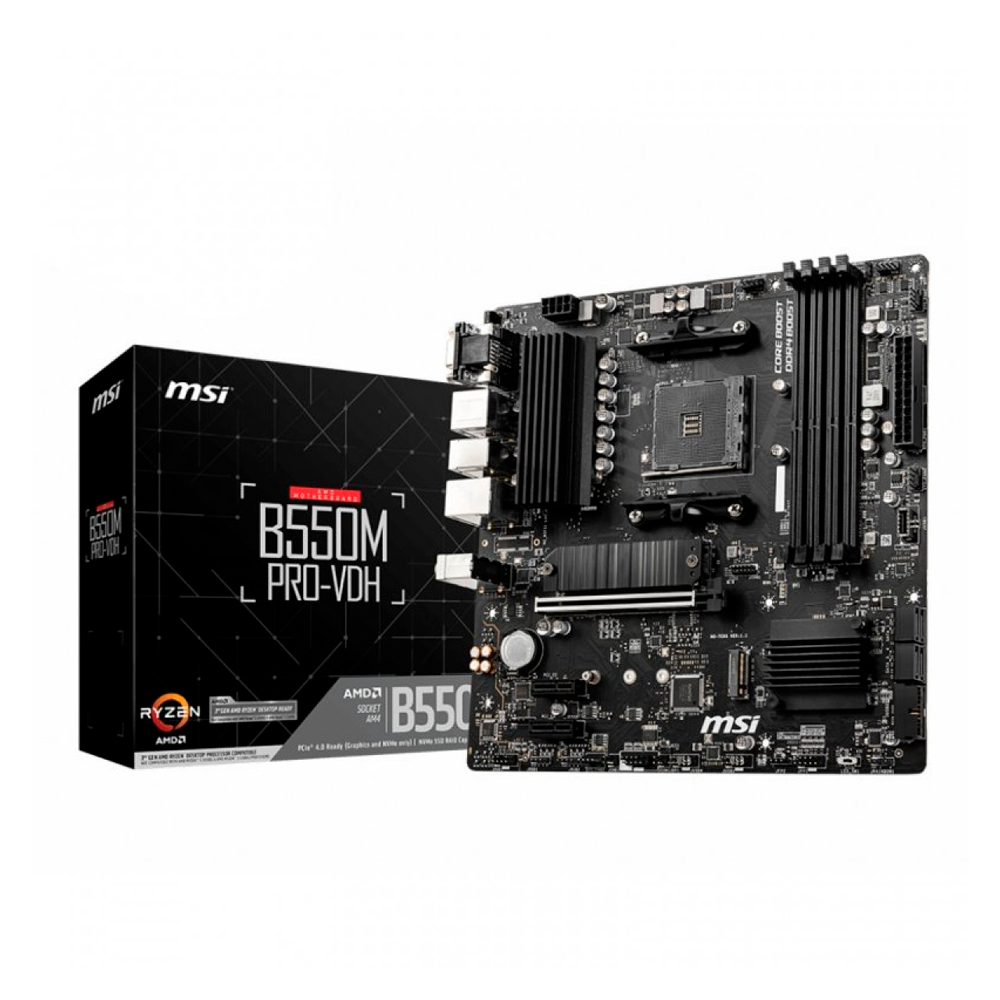

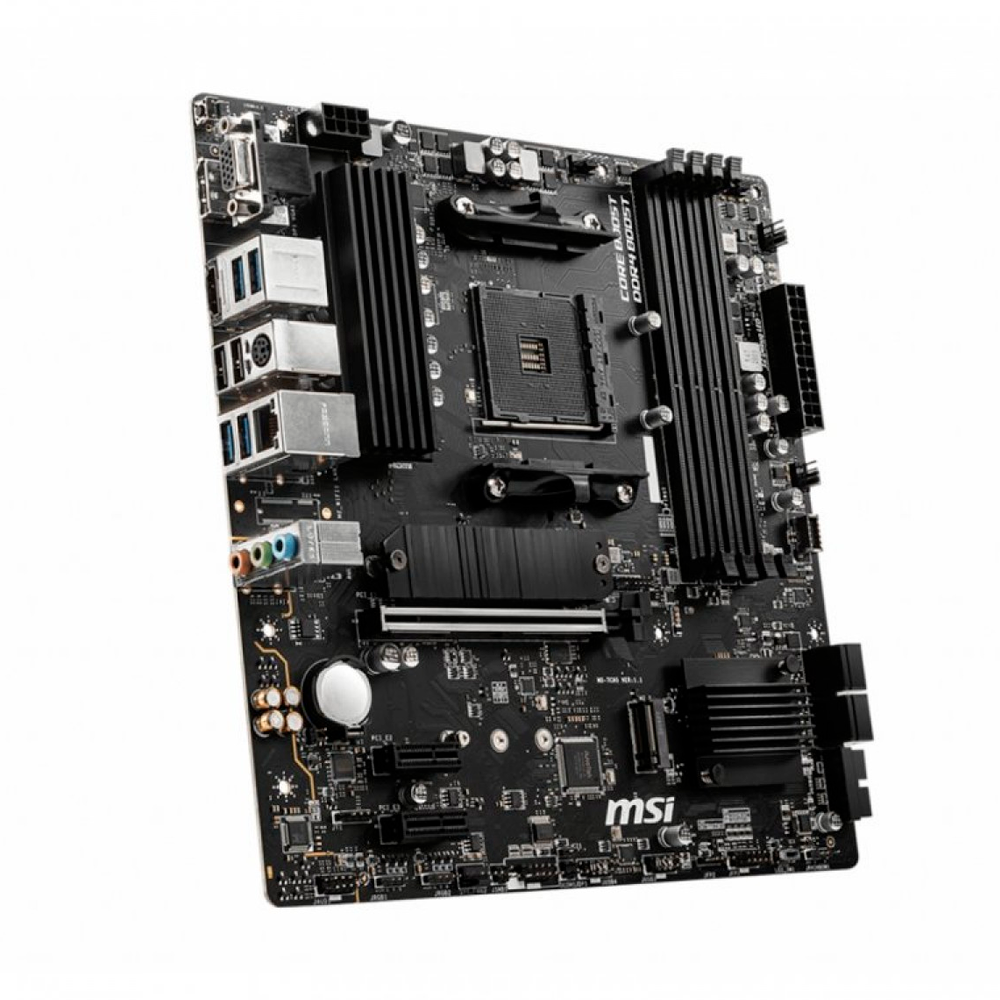

Marca: MSI
Modelo: B550M PRO-VDH
Especificações:
Processador:
Suporta processadores AM4 socket 3rd Gen AMD Ryzen e futuro AMD Ryzen™
Chipset: Intel B550
Memória RAM:
4x DDR4 memory slots, support up to 128GB
Suporta DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/
3066/ 3200 MHz by JEDEC
Suporta DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /
3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
Suporta arquitetura Dual-Channel
Suporta memória non-ECC UDIMM
Suporta memória ECC UDIMM
Suporta memória un-buffered
Slots de Expansão:
1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
2 x PCIe 3.0 x1 slots
Áudio: Realtek® ALC892 Codec
LAN: 1x Realtek® 8111HN Gigabit LAN
Armazenamento:
AMD B550 Chipset
4x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Suporta PCIe 4.0/ 3.0 x4 1
Suporta SATA 6Gb/s
Suporta 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Suporta PCIe 3.0x4
Suporta 2242/ 2260/ 2280 storage devices
Portas USB:
AMD B550 Chipset
3 x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector,
and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports
through the internal USB 2.0 connectors)
AMD Processor
4 x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Conectores Internos:
1 x 24-pin ATX main power
1 x 8-pin ATX 12V power
4 x SATA 6Gb/s
2 x M.2 slots (M-Key)
1 x USB 3.2 Gen 1 5Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan
1 x 4-pin water-pump fan
3 x 4-pin system fan
1 x Front panel audio
2 x System panel
1 x Serial port
1 x Chassis Intrusion
2 x 4-pin RGB LED
2 x 3-pin RAINBOW LED
1 xTPM module connector
1 x Clear CMOS jumper

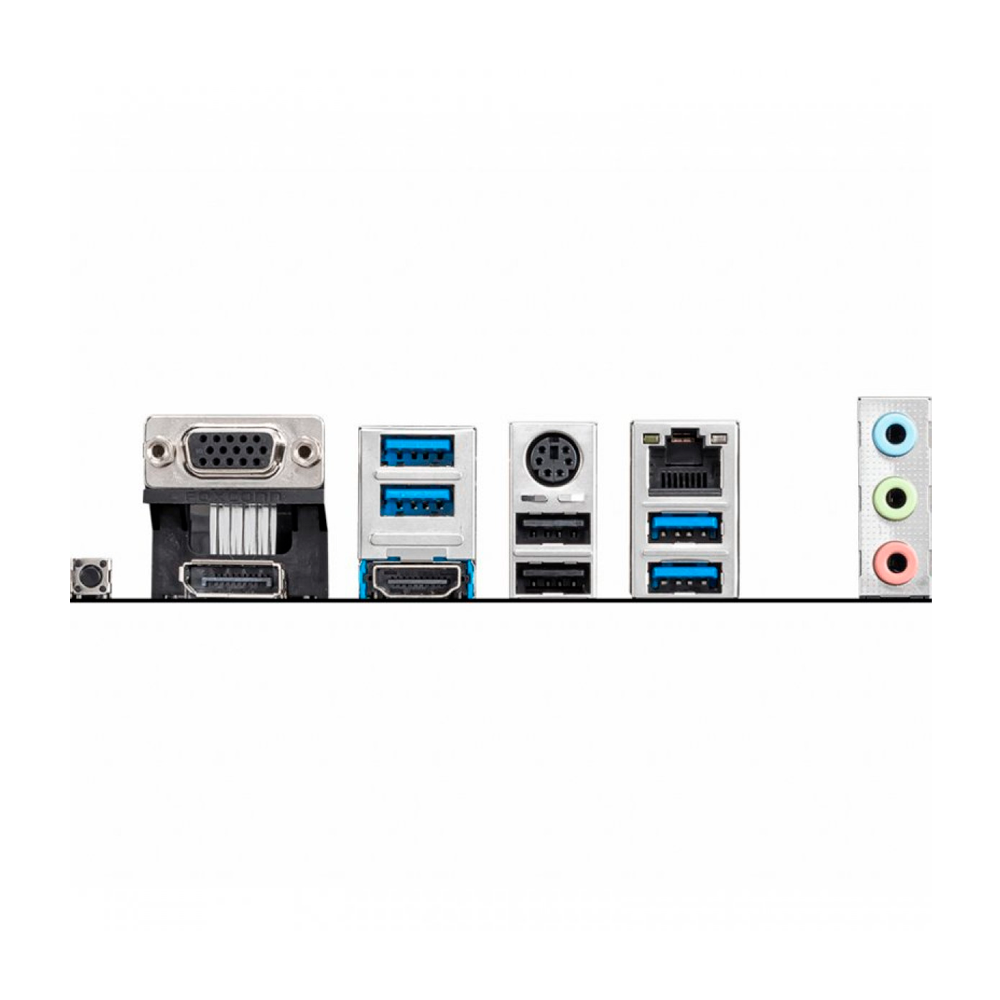

Portas I/O Painel Traseiro:
VGA
USB 3.2 Gen 1 5Gbps Type-A
Teclado / Rato
LAN:
Flash BIOS Button
DisplayPort
HDMI
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
3 x Conectores Áudio
Dimensões:
Formato Micro-ATX, 24.4 cm x 24.4 cm
Para mais informações acesse o site do fabricante: B550M PRO-VDH
